The roller probe of traditional contact-type rail head profile rangefinders smooths the measurement curve excessively, automatically filtering out minor changes, resulting in inaccuracy. It cannot distinguish the position of the switch rail for combined profiles of small cross-sections; moreover, the contact-type device cannot measure the light band and cannot provide light band analysis. However, our non-contact rail head profile rangefinder adopts advanced laser scanning technology, which can truly restore the microscopic morphology of the rail surface, accurately distinguish the characteristics of the switch rail, and simultaneously collect light band distribution information, completely solving the limitations of contact-type measurement.

The time to measure the speed at a single point on the track has been reduced from several minutes to a few seconds. The operation can be completed remotely on a tablet: First, place and fix the device on the track; second, click "Detect" on the tablet to extract the complete profile. The measurement process is fast and simple, using the principle of optical non-contact profile measurement without additional manual intervention. All detection processes are automatically controlled by the computer, and profile extraction can usually be completed within 1 second.

1. Eliminate sources of human error: Automated data collection systems avoid human interference factors such as perspective bias and differences in operational force.
2. Ultra hardcore precision: repeatability precision (0.05mm), exceeding national standard requirements, with precision reaching the level of the diameter of a hair strand!

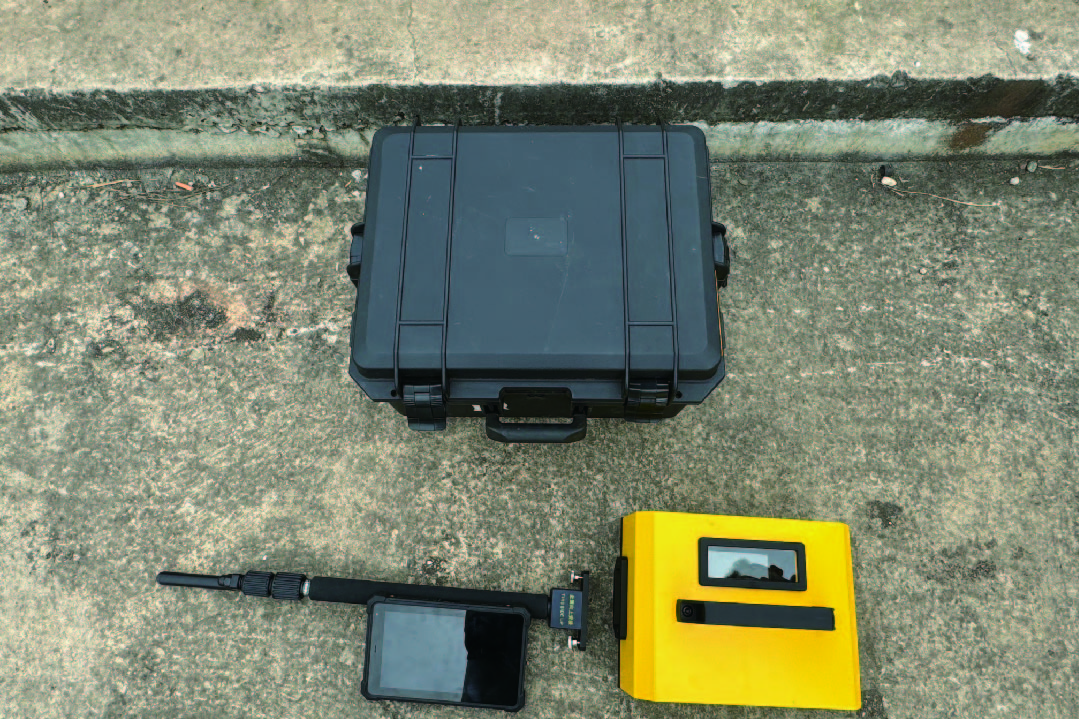

The traditional inspection team needs to be equipped with independent devices such as a gauge ruler (8kg), a wear meter (6kg), and a light band ruler (3kg), with a total load exceeding 17kg, which is comparable to carrying two bags of cement. The non-contact rail head profile rangefinder of Wanyan Railway integrates the functions of multiple separate tools, including profile measurement (damage determination - rail wear meter), combined profile (switch rail reduction value - reduction value meter), and light band width distribution measurement (light band ruler). The whole machine weighs only 5kg, can be easily carried by a single person, and completely liberates the labor force.

Functional advantages

1. All-round Warrior in Switch Areas: The equipment can directly measure the profile of ordinary rails, combined profiles, single switch rails, and various profiles with a width ranging from 15mm to 140mm. It can also directly import the standard profiles provided by customers into the software to realize real-time comparison while measuring. Especially in terms of switch rail wear measurement, we possess core technologies, which enable us to directly retrieve the original factory data as the benchmark, achieve accurate comparison and analysis of wear amount with extremely high measurement precision, and provide a scientific basis for switch rail maintenance.
2. One-click report generation: Generate PDF reports with contour comparison charts, wear analysis, and normal calculated values with one click.
